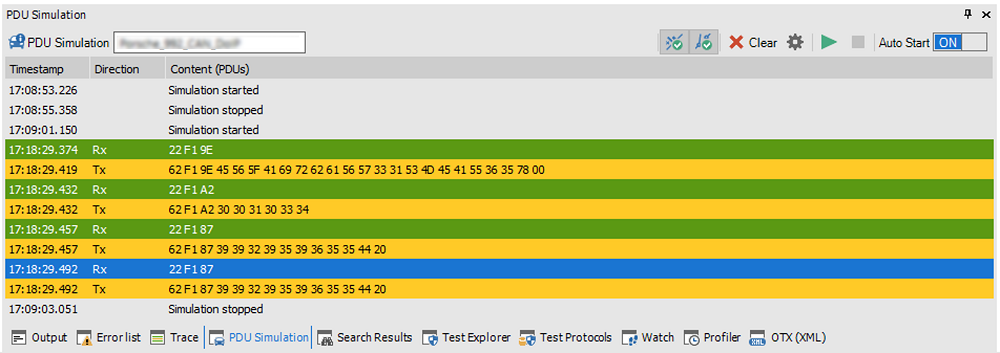

PDU Simulation (built-in)

With the built-in PDU simulation the diagnostic communication of the DiagCom extension can be simulated independently of the environment.

Related Topics:

• Unit Tests with OTX
• PduSimulation Extension

The following main functions are supported:

• Supports CAN and DoIP
• Supports physical and functional addressing
• Supports VariantIdentification and VariantSelection
• Automatic generation of TesterPresent
• BatteryVoltage (KL30) and IgnitionState (KL15) can be set
• Processes simulation files from DiagRA-S
• Can import a simulation from a DiagLogging file

Note: The system requirement for using the extension is that the used D-PDU API supports the simulation option.

Note: The built-in PDU simulation must be activated via license!

Step by step

Procedure to use the PDU simulation:

1. Turn on implicit OTX-ID logging
   The implicit OTX-Logging for the OTX-ID must be activated on the target system.
2. Create log file
   Execute the relevant OTX procedure on the target system and create the log file.
3. Load created log file in OTF Profiler
   Open the OTF with the appropriate solution and load the generated log file in the profiler window, see image.
4. Analyze Profiling Results
   A table containing the profiling results is displayed, see image. By sorting the appropriate columns, the profiling results can be analyzed, for example by sorting the "Mean Duration" column. By double-clicking on a line, the associated OTX activity is displayed.
